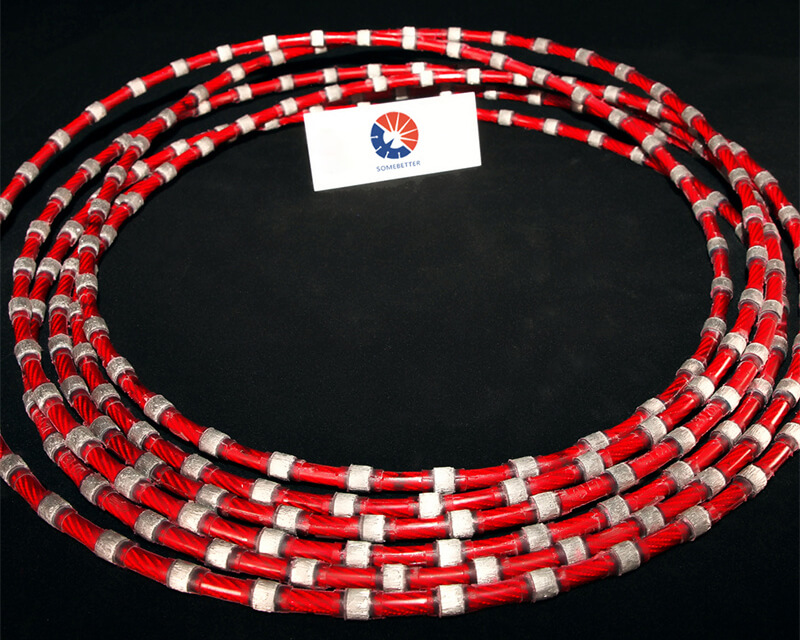

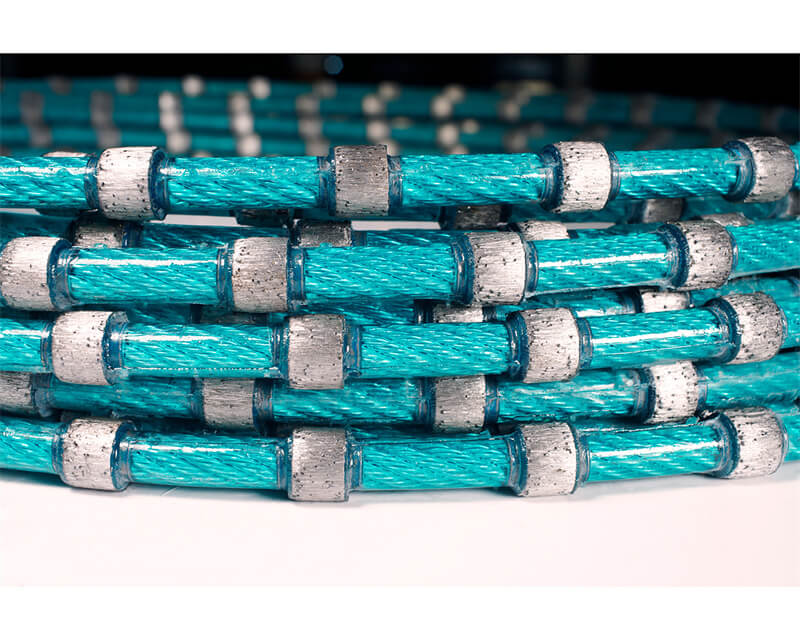

Diamond Wire-saws for marble quarries

  • Bit Type: Diamond Wire-saws
  • Size: φ12.5mm, φ11.5mm and custom-made
  • Applications: To be widely used for marble quarries, and for marble mine block squaring
  • Package: 370x370x95 mm per carton

Diamond Tools

Diamond blade
Diamond segment
Diamond/CBN grinding wheel
Polycrystalline diamond compact (PDC cutter)
Diamond grinding tools
Diamond polishing pads
Diamond Core Drill Bits
Diamond Wire Saw Rope
  • Product details
  • parameter
 To be widely used for marble quarries, and for marble mine block squaring.



It can be customised according to the information and stone samples provided by the customer, thus improving cutting efficiency and longevity.






 Specification and Technical Parameters of Diamond Beads

Specification (mm)

Height of Work Layer(mm)

Manufacture Technique

φ12.5

6.4

Hot Pressed Sintering

φ11.5

6.4
Hot Pressed Sintering

Specification and Performance Parameters of Diamond Wire-saws

Identification

Specification(mm)

Beads/m

Reinforcement

512R40

φ11.5

40

R/R+S

511R40

φ11.0

40

R/R+S

51198

φ11.0

28

S
*P:represents Plastic, R：represents Rubber,S： represents Spring

Cutting Material

Line Speed(m/s)

Cutting Speed(m2/h)

Wire Life(m2/m)

Low Rigidity Granite

35-40

10-15

40-80

Mid-hard Granite

32-35

8-12

25-60

Hard Granite

30-35

6-10

20-30
 Specification and Technical Parameters of Diamond Beads

Specification (mm)

Height of Work Layer(mm)

Manufacture Technique

φ12.5

6.4

Hot Pressed Sintering

φ11.5

6.4
Hot Pressed Sintering

Specification and Performance Parameters of Diamond Wire-saws

Identification

Specification(mm)

Beads/m

Reinforcement

512R40

φ11.5

40

R/R+S

511R40

φ11.0

40

R/R+S

51198

φ11.0

28

S
*P:represents Plastic, R：represents Rubber,S： represents Spring

Cutting Material

Line Speed(m/s)

Cutting Speed(m2/h)

Wire Life(m2/m)

Low Rigidity Granite

35-40

10-15

40-80

Mid-hard Granite

32-35

8-12

25-60

Hard Granite

30-35

6-10

20-30
