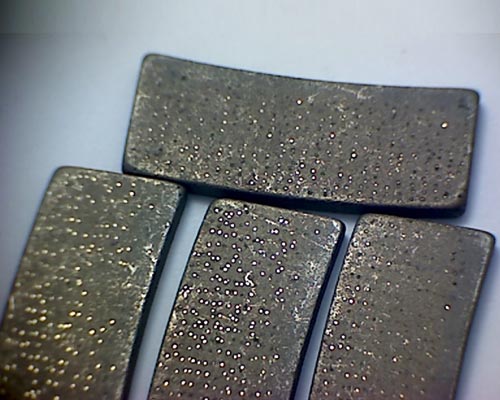

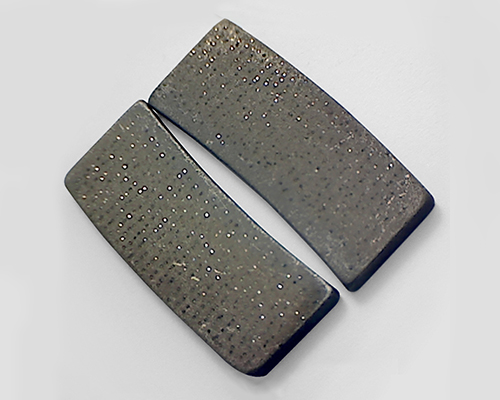

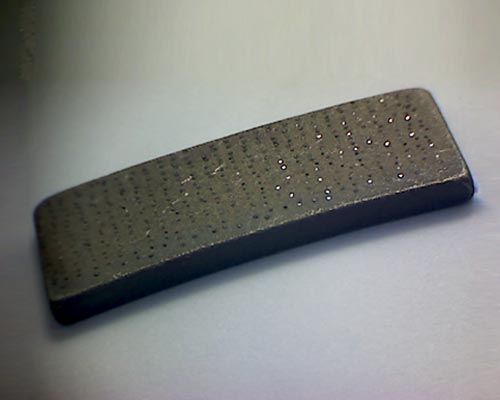

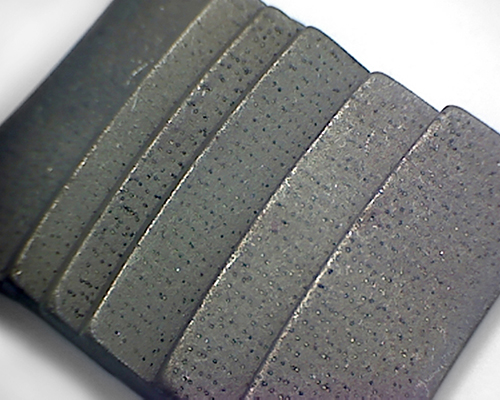

During the production of diamond segments, using the Arix technology can 100% control the distance between the diamond grains, so diamond grains can distribute uniformly in segments, we call this segment as “Arix Segment”which cutting efficient and using life are increased greatly compared to the normal segments.
Arix segment feature:
High cutting efficient, long use life, not easy to fall the teeth/segment.
Application:
Arix segment is widely used for cutting and drilling granite, marble,cured concrete, reinforced concrete, brick, block, masonry and natural stone materials ...
Machinery:
Diamond circular saw blade, diamond drill bit.

Parameter：

Outer Diameter	Length	Width	Height	SEG.NO./Set
250mm	40mm	2.6/2.8	10/15/20	17/18
300mm	40mm	2.8/3.0	10/15/20	20/21
350mm	40mm	3.0/3.2	10/15/20	24
400mm	40mm	3.4	10/15/20	28
450mm	40mm	3.6	10/15/20	32
500mm	40mm	3.8/3.6	10/15/20	35
600mm	40mm	4.6/4.2	10/15/20	42
700mm	40mm	5	10/15/20	50
725mm	40mm	5	20	54
800mm	24mm	5.4	10/15/20	46
900mm	24mm	6	10	24
1000mm	24mm	6.5/7.0	13/15/20	70
1200mm	24mm	7.5/6.5/6.6/6.8	13/15/20	80
1300mm	24mm	7.2/7.8	13	88
1400mm	24mm	7.2/7.8/7.8/8.4	10/15/20	96
1600mm	24mm	8.0/8.2/8.4/8.6/9.0/9.2	12/15/20	108
1800mm	24mm	9.0/9.2	13/15	120
2000mm	24mm	8.5/8.8/9.5	13/15/20	132
2200mm	24mm	9.9/10.0/10.6/11.2	15	136
2500mm	24mm	10.5/11.5	15	140
2700mm	24mm	11/12.2	20	150
3000mm	24mm	11/11.2/12.5/13	20/25/33	160
3500mm	24mm	12.0/12.2/13.5	20/26	180

                                                       Other Sizes are upon requirements
