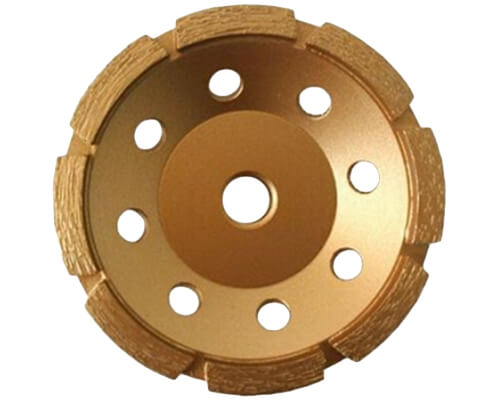

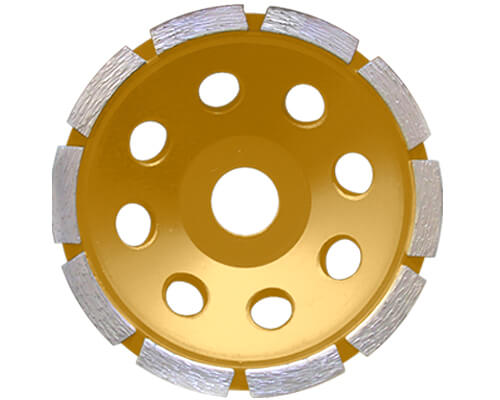

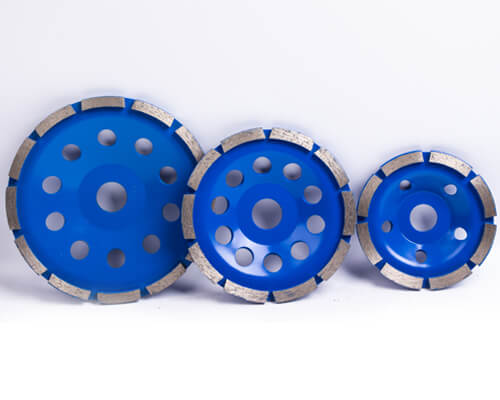

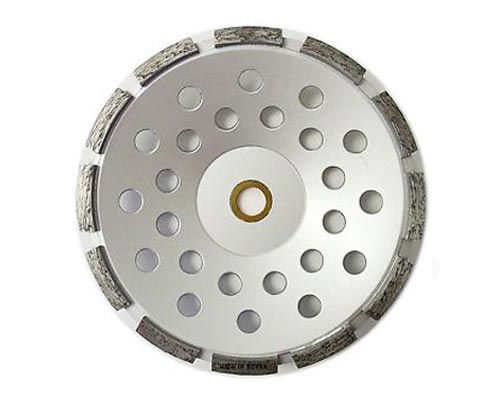

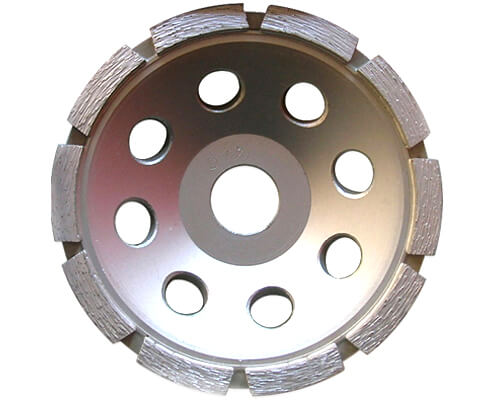

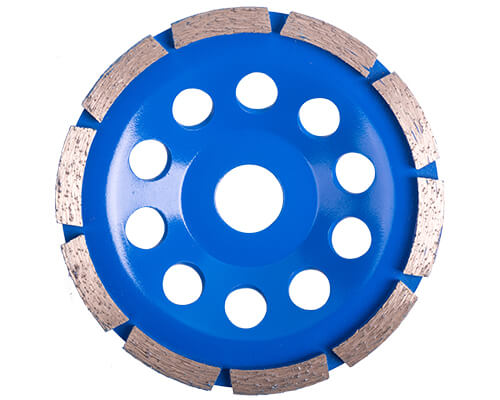

Single row diamond cup wheel is designed for grinding all kinds of marble, granite, concrete, and other construction materials, and ideal for beveling, smoothing and shaping
Feature:
Single row grinding wheel is ideal for beveling, smoothing and sharping, excellent performance.
Application:
FOR granite, marble, concrete products, masonry, construction materials, and all types of natural stones
Machinery:
Angle grinder

Parameter:

Outer Diameter		Arbor Size		Segment Dimension	Segment Number
Inches	Metric (mm)	Inches	Metric(mm)
4"	100	7/8"	22.23	30*5*7.2	8
4.125"	105	7/8"	22.23	31*5*7.2	8
4.3"	110	7/8"	22.23	32*5*7.2	8
4.5"	115	7/8"	22.23	30*5*7.2	9
5"	125	7/8"	22.23	30*5*7.2	10
6"	150	7/8"	22.23	30*5*7.2	12
7"	178	7/8"	22.23	30*5*7.2	12
7.1"	180	7/8"	22.23	30*5*7.2	13
9"	230	7/8"	22.23	32*5*7.2	18

                                        Other sizes and shapes are upon customers' requirements
