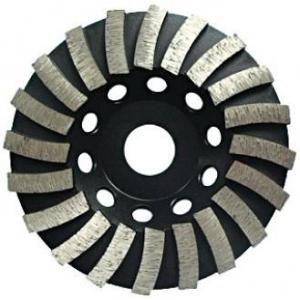

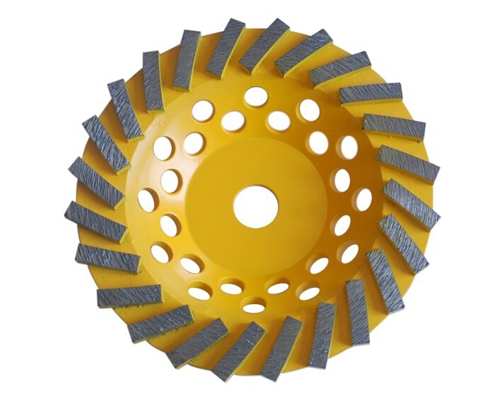

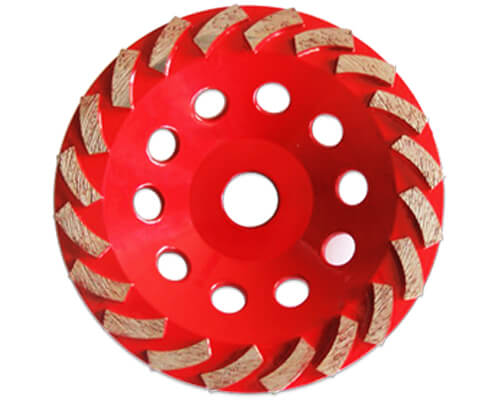

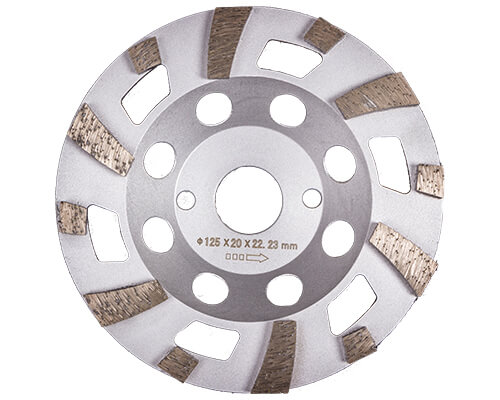

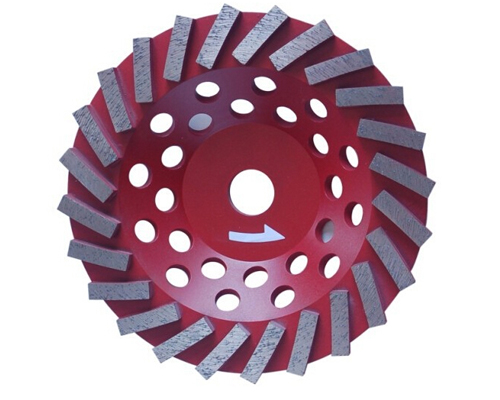

Segmented turbo cup wheel is very aggressive grinding and finish working, light weight designed, widely Used for all kinds of medium to high hard concrete, brick, block, stone, all types of masonry material.
Segmented turbo cup wheel Feature:
The design of segmented turbo cup wheel is suitable for removing materials fast.
Application:
FOR granite, marble, concrete products, masonry, construction materials, and all types of natural stones
Machinery:
Angle grinder

Parameter:

Outer Diameter		Arbor Size		Segment Dimension	Segment Number
Inches	Metric (mm)	Inches	Metric(mm)
4"	100	7/8"	22.23	30*5*7.2	8
4.125"	105	7/8"	22.23	31*5*7.2	8
4.3"	110	7/8"	22.23	32*5*7.2	8
4.5"	115	7/8"	22.23	30*5*7.2	9
5"	125	7/8"	22.23	30*5*7.2	10
6"	150	7/8"	22.23	30*5*7.2	12
7"	178	7/8"	22.23	30*5*7.2	12
7.1"	180	7/8"	22.23	30*5*7.2	13
9"	230	7/8"	22.23	32*5*7.2	18

                                        Other sizes and shapes are upon customers' requirements

Other related products:
Single row diamond cup wheel         Double row diamond cup wheel         Continuous turbo diamond cup wheel
