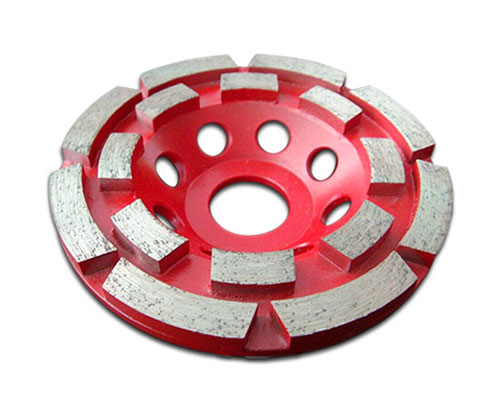

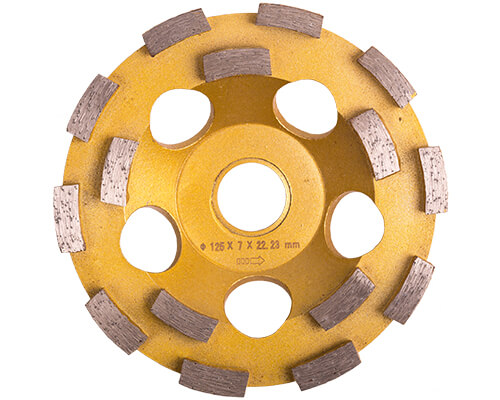

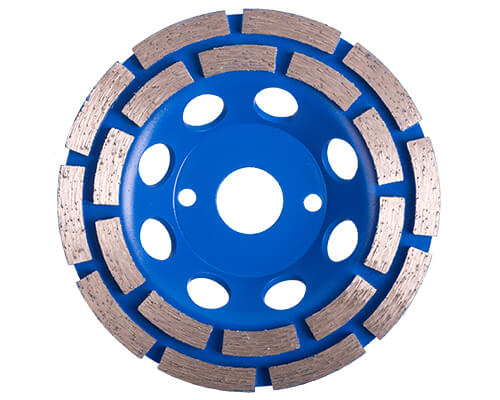

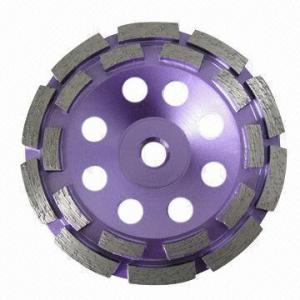

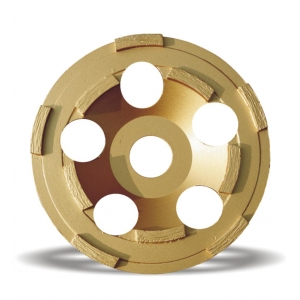

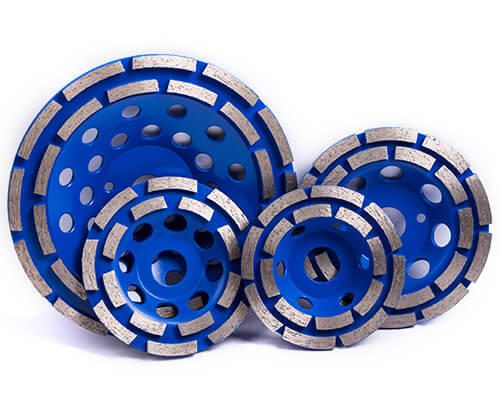

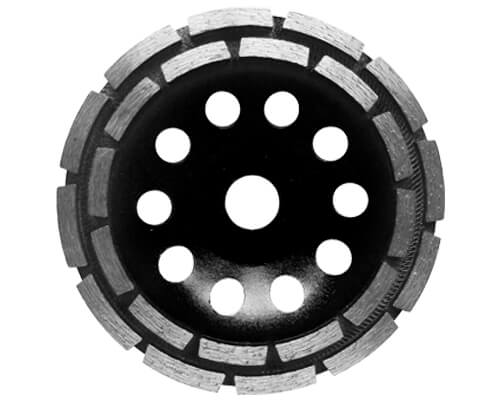

Double row diamond cup wheels are mainly used for buffing and sculpturing stones on the manual cutting machines and manual grinding machines, characterized by high working efficiency and using easily.
Double row diamond cup wheels Feature:
Double row grinding wheel is ideal for beveling,smoothing and sharping,excellent performance.
Application:
For granite, marble, concrete products, masonry, construction materials, and all types of natural stones
Machinery:
Angle grinder, hand grinding machine, manual cutting machines.

Parameter:

Outer Diameter		Arbor Size		Segment Dimension	Segment Number
Inches	Metric (mm)	Inches	Metric(mm)
4"	100	7/8"	22.23	30*5*7.2	8
4.125"	105	7/8"	22.23	31*5*7.2	8
4.3"	110	7/8"	22.23	32*5*7.2	8
4.5"	115	7/8"	22.23	30*5*7.2	9
5"	125	7/8"	22.23	30*5*7.2	10
6"	150	7/8"	22.23	30*5*7.2	12
7"	178	7/8"	22.23	30*5*7.2	12
7.1"	180	7/8"	22.23	30*5*7.2	13
9"	230	7/8"	22.23	32*5*7.2	18

                                        Other sizes and shapes are upon customers' requirements
