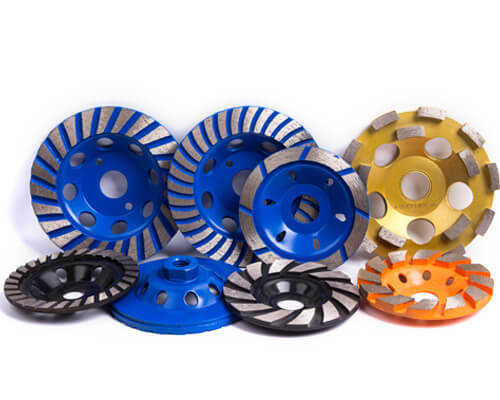

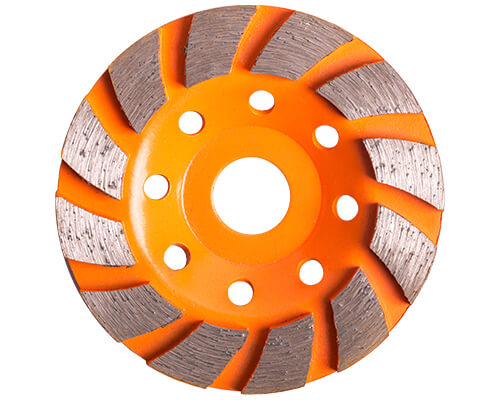

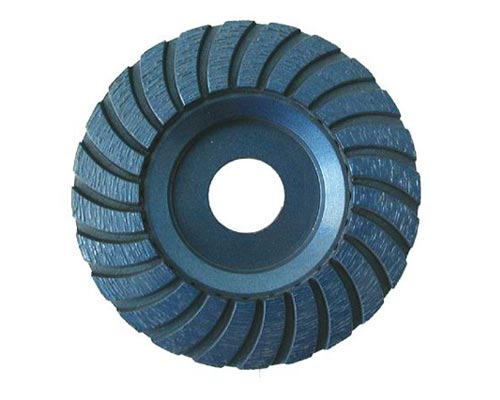

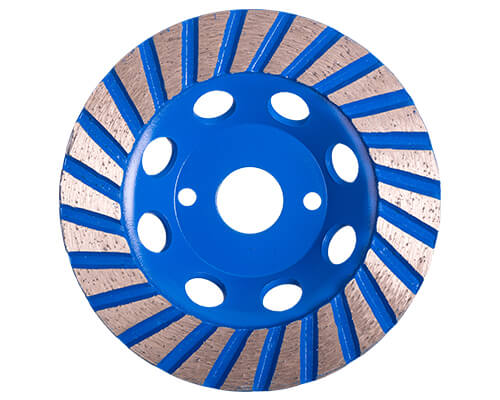

By sintering/silver brazed/cold press the diamond segments on the bowl shape metal matrix to become “Diamond Continuous turbo Grinding Cup wheel”, which are generally used for rough/finish grinding the surface of stones and construction materials.
Feature:
Continuous turbo grinding wheel is for rough/finish grinding the surface of stones and construction materials.
Application:
FOR grinding granite, marble, concrete products, masonry, construction materials
Machinery
Angle grinder

Parameter:

Outer Diameter		Arbor Size		Segment Dimension	Segment Number
Inches	Metric (mm)	Inches	Metric(mm)
4"	100	7/8"	22.23	30*5*7.2	8
4.125"	105	7/8"	22.23	31*5*7.2	8
4.3"	110	7/8"	22.23	32*5*7.2	8
4.5"	115	7/8"	22.23	30*5*7.2	9
5"	125	7/8"	22.23	30*5*7.2	10
6"	150	7/8"	22.23	30*5*7.2	12
7"	178	7/8"	22.23	30*5*7.2	12
7.1"	180	7/8"	22.23	30*5*7.2	13
9"	230	7/8"	22.23	32*5*7.2	18

Different arbor sizes and segments size are available upon request.
