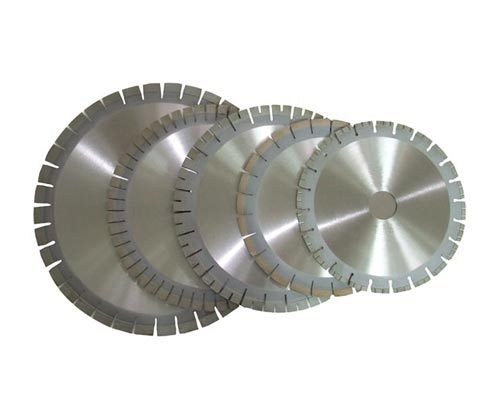

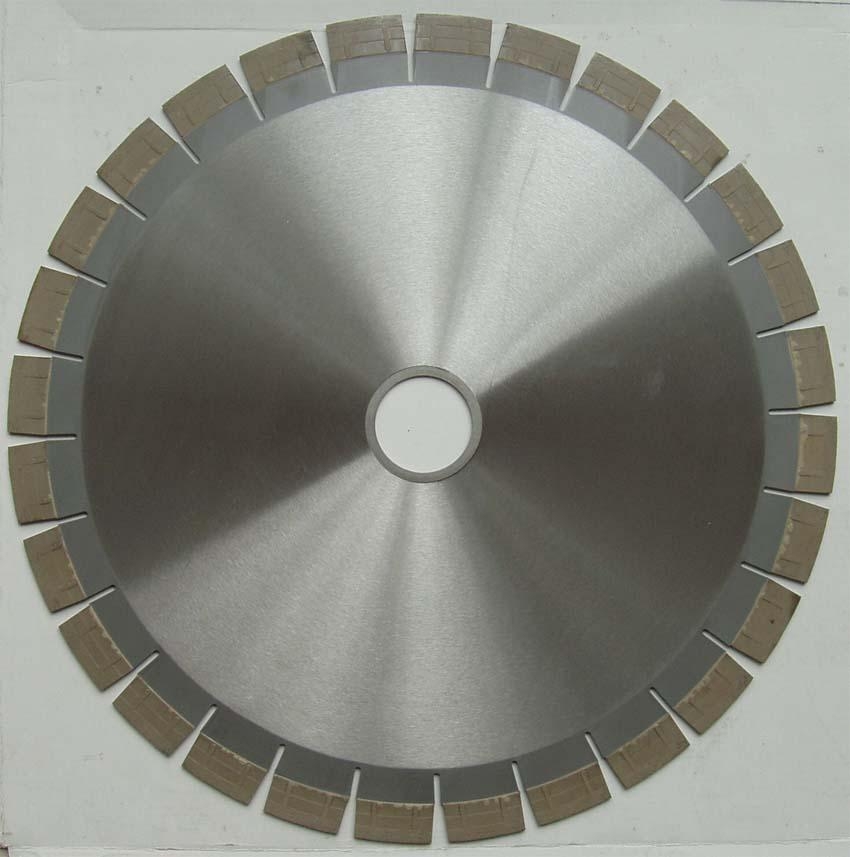

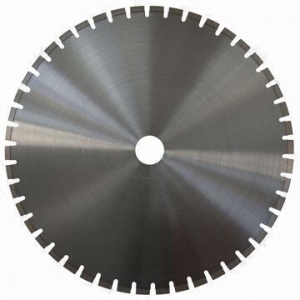

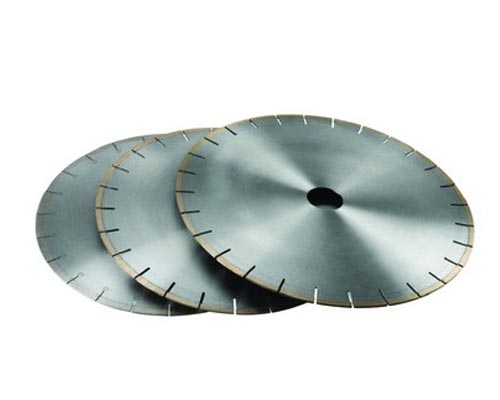

Adopting high frequency technology to weld segment with steel matrix by dissolving silver, this kind of diamond saw blade is called silver welding diamond blade, also called “High frequency diamond blade”.
Feature:
Compared to the other 3 Better type of blades, Silver welding diamond blade is very economic, widely used in worldwide.
Application:
General cutting of granite ,marble,masonry ,concrete materials, precise cutting of ceramic tiles,quarry tiles,water flood cooling enhances cutting quality and blade life ,engineering bricks ,and various kinds of construction materials.
Machinery:
Hand held saw, circular saw, high speed power saw, Angle grinder, Walk behind saw low hp, Flat saw, Tile saw, Masonry saw, Stone Saw.

Parameter：

Outer Diameter		Arbor Size		Segment Dimension	Segment Number
Inches	Metric (mm)	Inches	Metric (mm)
4"	105	7/8"	22.23	32*2.0*8/10	8
4.5"	115	7/8"	22.23	32*2.0*8/10	9
5"	125	7/8"	22.23	32*2.2*8/10	10
6"	150	7/8"	22.23	32*2.2*8/10	12
7"	180	7/8"	22.23	32*2.4*8/10	13
8"	200	7/8"	22.23	32*2.4*8/10	13
9"	230	7/8"	22.23	32*2.6*8/10	16
10"	250	7/8"	22.23	32*2.6*8/10	18
12"	300	1"	25.4	32*3.0*8/10	20
14"	350	1"	25.4	32*3.2*8/10	24
16"	400	1"	25.4	32*3.4*8/10	28
18"	450	1"	25.4	32*3.6*8/10	32
20"	500	1"	25.4	32*3.6*8/10	35
24"	600	1"	25.4	32*4.2*8/11	42

                                                    Other Sizes are upon requirements
