Resin Bond Diamond (R Series)
  • Resin Bond Diamond,synthetic diamond
  • Resin Bond Diamond,RVG
  • Resin Bond Diamond,RVD,diamond micron

Resin Bond Diamond (R Series)

  • Item Name Resin Bond Diamond
  • Quality Grades RVD Green/RVD Yellow/High Grade RVD/RVG
  • Size 50/60 60/70 70/80 80/100 100/120 120/140 140/170 170/200 200/230 230/270 270/325 325/400 400/500
  • Usage Applied to processing tungsten carbide, PCD die, stone materials, ceramics, gems and optical glass, PCD workpiece, etc.

  • Product details
  • parameter
Using RVD diamond as raw materials; appearing sharp-edged of cutting blade when being crashed under certain pressure, have a good self sharpness performance;Irregular particle surface and shape-edged of corner cut.

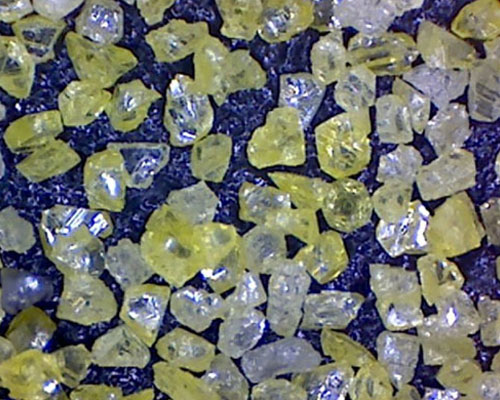

RVD(Yellow/Green): Resin bond diamond, irregular crystal shape, preferably self sharpness. Can be used in making resin bond or vitrified bond grinding apparatus to processing hard alloy, non-metal and polishing natural diamond, etc

High Grade Diamond Micron: Made from high grade diamond grits
RVE: It has the characteristics of friable and strong self sharpness, light gray, polycrystalline shape, low in hardness. Particularly applications for free cutting and high surface grinding materials

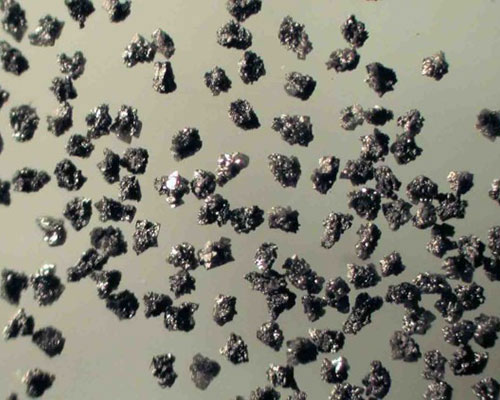

RVG(Polycrystalline Diamond Micron): Multi-nano-crystal structure, black, low intensity, micro-chipping and good self sharpness. Applied to resin bond tools required high processing efficiency





Applications: Applied to processing tungsten carbide, PCD die, stone materials, ceramics, gems and optical glass, PCD workpiece, etc.
                                                                        Resin Bond Diamond
Grade 50/60 60/70 70/80 80/100 100/120 120/140 140/170 170/200 200/230 230/270 270/325 325/400 400/500
RVD green √ √ √ √ √ √ √ √ √ √ √ √ √
RVD yellow √ √ √ √ √ √ √ √ √ √ √ √ √
High grade RVD √ √ √ √ √ √ √ √ √ √ √ √ √
RVG √ √ √ √ √ √ √ √ √ √ √ √ √
                                                                                     Resin Bond Diamond
Grade 50/60 60/70 70/80 80/100 100/120 120/140 140/170 170/200 200/230 230/270 270/325 325/400 400/500
RVD green √ √ √ √ √ √ √ √ √ √ √ √ √
RVD yellow √ √ √ √ √ √ √ √ √ √ √ √ √
High grade RVD √ √ √ √ √ √ √ √ √ √ √ √ √
RVG √ √ √ √ √ √ √ √ √ √ √ √ √
